Fire rated roller shutters
Where fire safety is a priority
Fire-resistant roller doors for indoor and outdoor use
Fire-resistant roller doors are suitable for use inside a building, but also between indoors and outdoors. They can be used frequently and intensively, for example in busy areas. They can only be installed in the opening, i.e. directly in or on the wall opening. For safe installation, it is important that the substrate is suitable. Permitted installation substrates include aerated concrete, cellular concrete, sand-lime brick, concrete, masonry and fire-resistant coated steel structures.
Any questions? We are happy to assist you
Our website contains a wealth of information, but sometimes personal advice is more useful. Our staff are ready to help you find the right solution. Feel free to contact us. Together, we will find the best solution for your business.
Options, standards and certifications for fire-rated roller shutters
RGS EW 60 / 90 / 120
Certification and standards
Indoor fire-rated roller shutters are CE marked and tested according to several European standards:
- Tested, double‑sided, compliant with EN 1634‑1
- classified in accordance with EN 13501‑2
- validated cycle test in accordance with C2 (> 10,000 cycles)
- CE marked in accordance with EN 13241 and EN 16034
Application
- suitable for indoor / indoor and indoor / outdoor situations
- suitable for frequent use
- mounting only possible on the wall / opening
- permissible mounting surfaces include: aerated concrete, sand-lime brick, concrete, masonry, fire-resistant steel construction
Standard configuration
Each door is standardly equipped with:
- gravity failsafe chain wheel drive 400 V incl. control box
- external gravity failsafe tubular motor 230 V incl. control box (till ± 8 m²)
- Visual and audible indicators
- door leaf constructed from double-walled, galvanized steel, slats, thickness 22 mm
Optional features
The fire-rated roller shutters can be fitted with:
- application in indoor / outdoor situations up to wind class 5 (> 1.000 Pa)
- roll / motor cover box, galvanized steel
- galvanised steel parts powder coated in RAL colour of your choice
- side guides, brackets, cover box in stainless steel INOX 304 or 316
- set of light curtains
- Smoke detector for stand-alone system
- various switches
classification: EW
fire resistance: 60 min.
Max opening width: 9.000 mm
Max opening height: 9.000 mm
Max opening: ± 56 m2
classification: EW
fire resistance: 90 min.
Max opening width: 9.000 mm
Max opening height: .9.000 mm
Max opening: ± 18 m2 - ± 29 m2
classification: EW
fire resistance: 120 min.
Max opening width: 9.000 mm
Max opening height: .9.000 mm
Max opening: ± 14 m2 - ± 25 m2

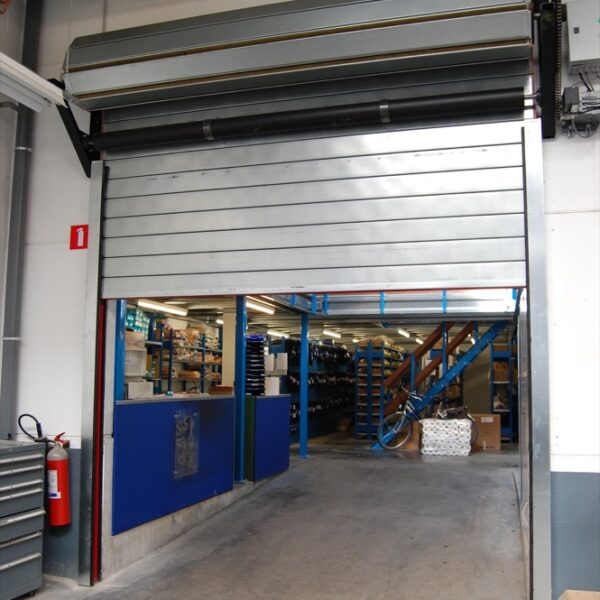

RGS EW 240
Certification and standards
Indoor fire-rated roller shutters are CE marked and tested according to several European standards:
- Tested, double‑sided, compliant with EN 1634‑1
- classified in accordance with EN 13501‑2
- validated cycle test in accordance with C2 (> 10,000 cycles)
- CE marked in accordance with EN 13241 and EN 16034
Application
- suitable for indoor / indoor and indoor / outdoor situations
- suitable for frequent use
- mounting only possible on the wall / opening
- permissible mounting surfaces include: aerated concrete, sand-lime brick, concrete, masonry, fire-resistant steel construction
Standard configuration
Each door is standardly equipped with:
- gravity failsafe chain wheel drive 400 V incl. control box
- gravity failsafe tubular motor 230 V incl. control box (till ± 8 m²)
- Anti-fall safety mechanism
- Visual and audible indicators
- door leaf constructed from double-walled, galvanized steel, slats, thickness 60 mm
Optional features
The fire-rated roller shutters can be fitted with:
- application in indoor / outdoor situations up to wind class 3 (> 700 Pa)
- roll / motor cover box, galvanized steel
- galvanised steel parts powder coated in RAL colour of your choice
- set of light curtains
- Smoke detector for stand-alone system
- various switches
classification: EW
Fire resistance: 120* min.
max. opening width: 9.000mm
max. opening height: 8.750 mm
Max opening: 45 m²
classification: E
Fire resistance: 240 min.
max. opening width: 9.000mm
max. opening height: 8.750 mm
Max opening: 45 m²
* additional performance EW 240 minutes is not possible to certify according EN 13501-2
RGS EW 360 TWIN
Certification and standards
Indoor fire-rated roller shutters are CE marked and tested according to several European standards:
- Tested, double‑sided, compliant with EN 1634‑1
- classified in accordance with EN 13501‑2
- validated cycle test in accordance with C2 (> 10,000 cycles)
- CE marked in accordance with EN 13241 and EN 16034
Application
-
- suitable for indoor / indoor and indoor / outdoor situations
- suitable for frequent use
- mounting only possible on the wall / opening
- permissible mounting surfaces include: aerated concrete, sand-lime brick, concrete, masonry, fire-resistant steel construction
Standard configuration
Each door is standardly equipped with:
- construction of double, symmetrically installed, fire rated roller shutters
- gravity failsafe chain wheel drive 400 V incl. control box
- external gravity failsafe tubular motor 230 V incl. control box (till ± 8 m²)
- external safety catch devices
- Visual and audible indicators
- door leafs constructed from double-walled, galvanized steel, slats, thickness 22 mm
Optional features
The fire-rated roller shutters can be fitted with:
- application in indoor / outdoor situations up to wind class 5 (> 1.000 Pa)
- roll / motor cover box, galvanized steel
- galvanised steel parts powder coated in RAL colour of your choice
- side guides, brackets, cover box in stainless steel INOX 304 or 316
- set of light curtains
- Smoke detector for stand-alone system
- various switches
classification: EW
fire resistance: 60 min.
Max opening width: 9.000 mm
Max opening height: 9.000 mm
Max opening: ± 56 m2
classification: EW
fire resistance: 120 min.*
Max opening width: 9.000 mm
Max opening height: .9000 mm
Max opening: ± 56 m2
classification: EW
fire resistance: 90 min.
Max opening width: 9.000 mm
Max opening height: .9000 mm
Max opening: ± 56 m2
classification: EW
fire resistance: 240 min.*
Max opening width: 9.000 mm
Max opening height: .9000 mm
Max opening: ± 56 m2
* additional performances EW 240 and EW 360 minutes are not possible to certify according EN 13501-2
RGS EI(1)30 / RSG EI(2)60
Certification and standards
Indoor fire-rated roller shutters are CE marked and tested according to several European standards:
- Tested, double‑sided, compliant with EN 1634‑1
- classified in accordance with EN 13501‑2
- validated cycle test in accordance with C2 (> 10,000 cycles)
- CE marked in accordance with EN 13241 and EN 16034
Application
-
- suitable for indoor / indoor and indoor / outdoor situations
- suitable for frequent use
- mounting only possible on the wall / opening
- permissible mounting surfaces include: aerated concrete, sand-lime brick, concrete, masonry, fire-resistant steel construction
Standard configuration
Each door is standardly equipped with:
- gravity failsafe chain wheel drive 400 V incl. control box
- gravity failsafe tubular motor 230 V incl. control box (till ± 8 m²)
- Anti-fall safety mechanism
- Visual and audible indicators
- door leaf constructed from double-walled, galvanized steel, slats, thickness 60 mm
Optional features
The fire-rated roller shutters can be fitted with:
- application in indoor / outdoor situations up to wind class 3 (> 700 Pa)
- roll / motor cover box, galvanized steel
- galvanised steel parts powder coated in RAL colour of your choice
- set of light curtains
- various switches
- key switch, up-stop-down switch
classification: EI(1)
Fire resistance: 30 min.
Max opening width: 9.000 mm
Max opening height: 8.750 mm
Max opening: ± 45 m2
classification: EI(2)
Fire resistance: 30 min.
Max opening width: 9.000 mm
Max opening height: 8.750 mm
Max opening: ± 45 m2
classification: EI(1)
Fire resistance: 45 min.
Max opening width: 9.000 mm
Max opening height: 8.750 mm
Max opening: ± 45 m2
classification: EI(2)
Fire resistance: 60 min.
Max opening width: 9.000 mm
Max opening height: 8.750 mm
Max opening: ± 45 m2

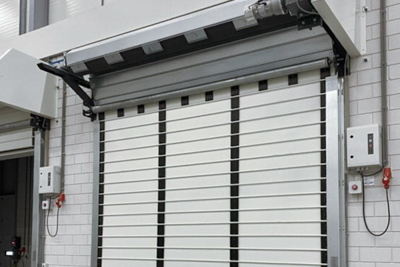

RGC EI(1) 60
Certification and standards
Indoor fire-rated roller shutters are CE marked and tested according to several European standards:
- Tested in accordance with EN 1634-1
- classified in accordance with EN 13501‑2
- classified according to EN 13501-1 on fire class B-s1, d0
- validated cycle test in accordance with C3 (> 50.000 cycli)
- CE marked in accordance with EN 13241 and EN 16034
Application
-
- suitable for indoor / indoor and indoor / outdoor situations
- applicable in protected escape routes, not as an escape route
- mounting only possible on the wall / opening
- permissible mounting surfaces include: aerated concrete, sand-lime brick, concrete, masonry, fire-resistant steel construction
Standard configuration
Each door is standardly equipped with:
- gravity failsafe chain wheel drive 400 V incl. control box
- external gravity failsafe tubular motor 230 V incl. control box (till ± 14 m²)
- Anti-fall safety mechanism
- Visual and audible indicators
- door leaf constructed from galvanized steel slats (front) and fire-resistant composite panels (back), total thickness 43mm, with a mixed white structure
Optional features
The fire-rated roller shutters can be fitted with:
- application in indoor / outdoor situations up to wind class 5 (> 1.000 Pa)
- burglar-resistant version (outside => inside) in accordance with RC 3 or RC 4
- sound insulation value 32 dB or 34 dB
- roll / motor cover box, galvanized steel
- galvanised steel parts powder coated in RAL colour of your choice
- set of light curtains
- Smoke detector for stand-alone system
- various switches
- explosion-proof (ATEX) components and marking
- liquid barrier with height 300 mm
classification: EI(1)
Fire resistance: 30 min.
Max opening width: 9.000 mm
Max opening height: 8.000 mm
Max opening: ± 32,5 m2
classification: EW
Fire resistance: 30 min.
Max opening width: 9.000 mm
Max opening height: 8.000 mm
Max opening: ± 32,5 m2
classification: EI(1)
Fire resistance: 60 min.
Max opening width: 9.000 mm
Max opening height: 8.000 mm
Max opening: ± 32,5 m2
classification: EW
Fire resistance: 60 min.
Max opening width: 9.000 mm
Max opening height: 8.000 mm
Max opening: ± 32,5 m2
